Chart Management

It is possible to scale, move the charts and view the information about individual points. Above the chart, there is a toolkit with useful buttons:

Area selection	Click this button to scale (zoom in) any selected area. Hold left mouse button and select required area. This operation can be repeated multiple times.
/  Lock/unlock Y axis	Switching from work with a single axis (X) to multiple axes (XY).
Autoscaling	Return to the original scale of the chart.
Zoom in/zoom out	The buttons change the scale of the chart by fifty percent with respect to the visible zone. The center of the chart remains fixed.
/  Messages/point tracing	Switching between these modes makes it possible to look through the information on one chart or on all available ones by hovering the cursor.
Save as PNG	The button allows you to save the visible area of the chart along with the coordinate axes in PNG format.
Lock charts	This button appears in the Dual report view mode. Activating this button allows to apply the same actions to the charts simultaneously.

If the X axis shows time, you can click any place of the chart to move to the corresponding location on the map.

Transfer from chart to messages

This function is useful for analyzing the source data from the unit. In order to request messages from the unit from the chart, click the Transfer to messages button  located on the right side of the toolbar. Click the left mouse button anywhere in the chart. As a result, you will go to the message panel with open data for the period specified in the report. Other functionality works in the same way as transfer from tabular report to messages.

When switching between charts, the state of the button automatically changes to the original one.

The rest of the buttons work the same as in the table reports.

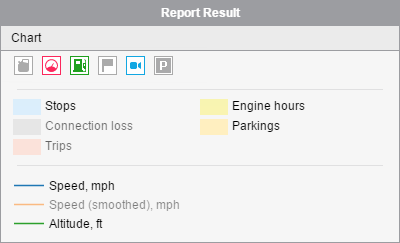

Chart Legend

A chart legend can be found in the work area. The legend is divided into sections and contains information about the selected charts and their properties. Click on the name of the element in the legend to enable or disable its display in the chart (by default, all are displayed).
