To display a driver on the map, tick the checkbox on their left. As
drivers do not have their own coordinates, they borrow their location
from units to which they are assigned. Click on driver's name on the
list to center the map on their position. An assigned driver is
represented by a small icon at the bottom right corner of unit's icon.
If a driver is not attached to any unit at the moment, their last known
position is shown (with a bigger icon). If there is no data about
driver's location (for example, if they have never been bound to any
unit), such a driver is not shown on the map.
Note that in order drivers to be displayed on the map you should check if the corresponding layer is active.
DDD files received from tachograph contain driver's activity
information. Such files can be uploaded automatically (due to the
corresponding settings of an equipment), or manually (using 'TachoManager'

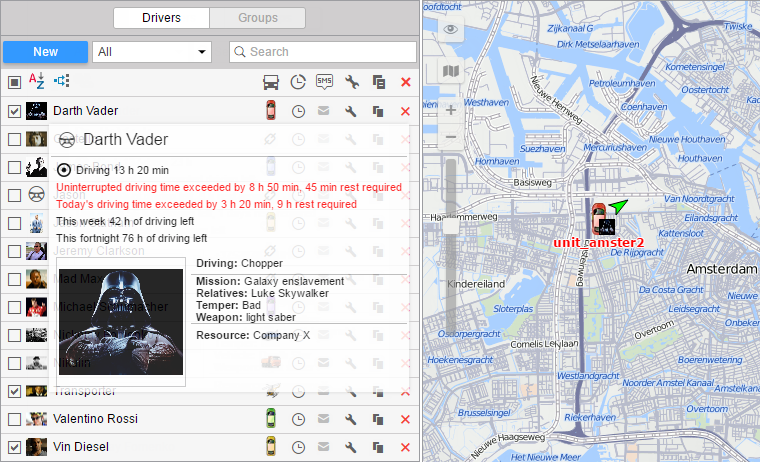

application). Received information on driver's activity helps to
control whether a driver follows the AETR standards or not. Driver's
activity is displayed in the tooltip of each driver, and contains the
following data:
If there is less than 1 hour left for driving in the current shift or
less than 3 hours left for driving in the week or two weeks, the tooltip
will contain a warning.
Moreover, the tooltip shows driver's name, phone number, enlarged photo,
resource (if there are several), description, and custom fields (if any
were set). Moreover a unit name can be shown in a tooltip is a driver
is bound to it. You can call a phone number shown in the tooltip by Skype if you have 'Click to Call' plugin downloaded and enabled on your computer. To do so, click a necessary phone number in the tooltip.
If you have Skype on your computer, the phone number is highlighted, and you can make a call if clicking on it.
If a driver is bound to a unit, unit icon is displayed on the right of
trailer's name. If you place the cursor over this icon, the unit's
tooltip is displayed (the same as in the Monitoring panel).
