Messages Tracing

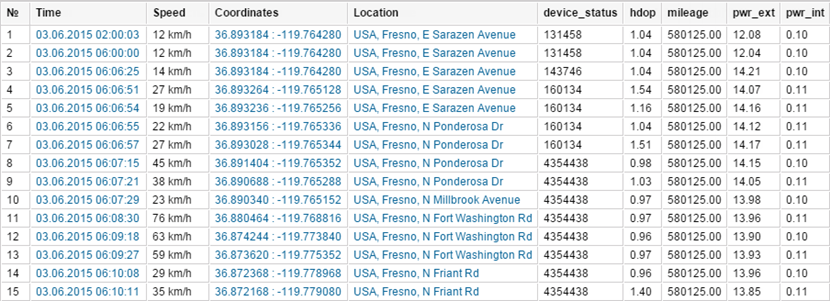

The main objective of this report is to facilitate the work with the parameters from the messages. That is why the parameter values are presented not as a single data array, but have a particular structure. It means that every parameter is located in its own column.

Along with the parameter values this report can include other columns:

• Time — the date and time when the message was sent.

• Speed — the speed of a unit from the received message.

• Coordinates — the coordinates of the unit.

• Location — the location of the unit at the time when the message was sent.

• Value — the value of the parameter sent in a message.

• Driver — the name of the driver (if available).

• Trailer — the name of the trailer (if one was bound).

• Notes — an empty column to add your custom comments after printing or exporting the report.


Note that you can click on a link in such columns as Time, Coordinates and Speed to view the position of a unit on the map.

Note.

This table cannot be generated for unit groups.
