Tracks Management

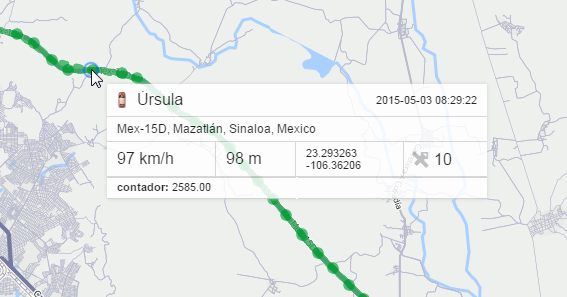

Hover the cursor over a track to get accurate information about a
specific point of the track (points where messages were received).
Messages are searched in the radius of 50 pixels from the cursor. Points
found are highlighted by a a pulsating circle, and a tooltip appears
with the following information: time, address, speed, altitude,
coordinates, satellites, and sensor values. Messages with zero speed are
marked with bigger points. Measurements used in the tooltip are
borrowed from the unit properties (speed in kilometers or miles per
hour, altitude in meters or feet), as well as mileage in the list of
tracks. The information from the tooltip can be copied to the clipboard.
You can manage tracks in the left part of the window under the Show Track button. The name of a unit is displayed on the list, as well as the
time interval and traveled mileage. Mileage in tracks can sometimes
differ from mileage in reports (if there are invalid messages within the
interval). In such cases, more accurate mileage is provided in reports.
It is possible to view all created tracks on the map simultaneously or
select just some of them. The tracks with marked checkboxes are
displayed. Unmark a checkbox to hide the track. Using the checkbox in
the header, you can select/unselect all tracks at once. You can
temporarily hide all tracks by disabling the corresponding layer in the top panel.
If there are several tracks available, you can sort them by length or
name. To do this, click in the header of the list above mileage or name
columns. Click again to sort the list in reverse order.
Use the arrows
to quickly locate the initial/final point of the track. To see the
whole track and focus the map on it, just click on its name in the list.
You can play the track by clicking the button next to it. Pressing thePlay button opens a special tool Track Player and launches playback. The unit icon will move along the track line at the selected speed.
Furthermore, another special tool can be applied to a track — Hittest. It allows you to get the comprehensive information for any point of the track.
To delete a track, click on an appropriate button next to it . Using a similar button in the header of the list, you can delete all tracks at once.
Moreover, a built track can be saved as a line geofence. To do this, click on the corresponding button .
Note that if the number of points of a track is more than 10000, it is
saved in several geofences with the same name and a digital index in
brackets. For example, Geofence (1), Geofence (2), etc
