Unfinished Rides

Unfinished Rides

See the Rides topic to learn how to prepare rides for this report.

Unfinished is a ride when a unit left a beginning-ride geofence and after a while entered a beginning-ride geofence again. This can be the same geofence (if circle rides are not allowed) or another one.

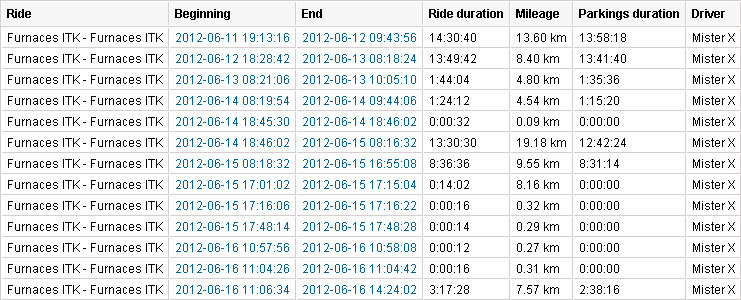

The structure of the report is the same as for usual rides:

  • Ride: departure and destination geofences.
  • Ride from: can be used instead of the previous column. Only the departure geofence is indicated here.
  • Ride to: destination geofence.
  • Beginning: date and time when the ride began.
  • End: date and time when the ride ended.
  • Mileage: distance traveled in this ride.
  • Mileage (adjusted): mileage subject to the coefficient set in unit properties ('Advanced' tab).
  • Ride duration: how much time it took to perform the ride.
  • Total time: time from the first ride beginning to the last ride end.
  • Parkings duration: time spent in parkings.
  • Avg speed: average speed calculated for this ride.
  • Max speed: maximum speed registered during this ride.
  • Driver: driver's name if he was identified.
  • Trailer: trailer's name if any was bound.
  • Counter: counter sensor value.
  • Initial counter: counter value at the beginning.
  • Final counter: counter value at the end.
  • Count: the number of rides (can be helpful either in grouping table data by years/months/weeks/days/shifts or for the reports on unit groups).
  • Status: unit status registered during the current ride (if there are several, the first one is displayed).
  • Consumed: the volume of consumed fuel detected by any sort of fuel sensor. If several such sensors are available, their values sum up.
  • Consumed by ImpFCS/AbsFCS/InsFCS/FLS/math/rates: the volume of consumed fuel detected by a fuel sensor (like impulse/absolute/instant fuel consumption sensor, fuel level sensor) or calculated by math or rates. Details about fuel in reports...
  • Avg consumption: average fuel consumption by any sort of fuel sensor. If several such sensors are available, their values sum up.
  • Avg consumption by ImpFCS/AbsFCS/InsFCS/FLS/math/rates: average fuel consumption in the ride detected by one of the methods mentioned above.
  • Initial fuel level: fuel level at the beginning of the ride.
  • Final fuel level: fuel level at the end of the ride.
  • Max fuel level: maximum fuel level.
  • Min fuel level: minimum fuel level.
  • Penalties: penalties calculated for adjusted 'Eco Driving' criteria.
  • Rank: received penalty points converted into a grade using 6 point scoring system.
  • Notes: an empty column for your custom comments.


See Rides to find out more information about additional parameters for 'Unfinished rides'.
