Check Points

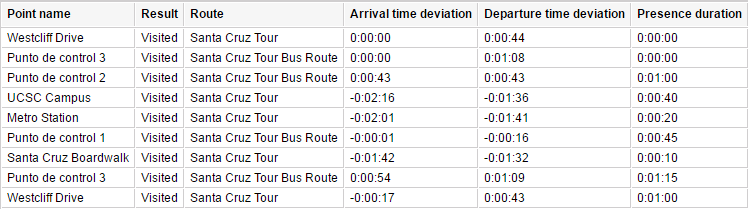

Route points refer to check points indicated when creating a route. The table can include:

• Point name — the name given to this check point while creating it.

• Real arrival — the time when the unit entered the check point.

• Scheduled arrival — the time when the unit was supposed to enter the check point according to the schedule.

• Initial location — location at the time of entry.

• Real departure — the time when the unit left the check point.

• Scheduled departure — the time when the unit was supposed to leave the check point according to the schedule.

• Final location — location at the time of departure.

• Result — Visited (both entrance and exit were detected), Entrance only, Exit only, Skipped.

• Route — the name of the route to which this check point belongs.

• Schedule — the name of the schedule.

• Round — the name of the round.

• Arrival time deviation — positive value if delayed, negative value if in a hurry in regards to the arrival time set in the point properties.

• Departure time deviation — positive value if delayed, negative value if in a hurry in regards to the departure time set in the point properties.

• Presence duration — the time spent at the check point.

• Presence mileage — the mileage at the check point.

• Section duration — time spent to travel from the previous check point to the current one.

• Section mileage — the mileage from the previous check point.

• Count — the number of points.

• Driver the name of the driver (if available).

• Trailer — the name of the trailer (if it was bound).

• Notes — an empty column for your custom comments.
